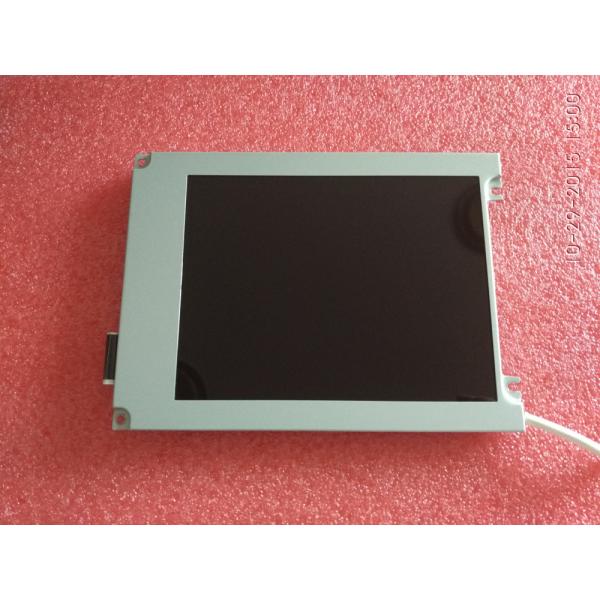

F-55157GNF-LW-ASN Kyocera 5.7INCH LCM 320×240RGB 150NITS WLED INDUSTRIAL LCD DISPLAY

Name: F55157GNFLWASN Kyocera 57INCH LCM 320240RGB 150NITS WLED INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China F-55157GNF-LW-ASN Kyocera 5.7INCH LCM 320×240RGB 150NITS WLED INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : F-55157GNF-LW-ASN

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : F-55157GNF-LW-ASN

SIZE : 5.7INCH

RESOLUTION : 320×240RGB

BRIGHTNESS : 150 (Typ.)(cd/m²)

Screen Type : LCM , FSTN-LCD

Backlight : 3S3P WLED , No Driver

Max. Ratings : Storage Temp.: -20 ~ 70 °C Operating Temp.: 0 ~ 60 °C

Contact Now

OPTREX F-55157GNF-LW-ASN Application Details

Basic Info :	Panel Brand F-55157GNF-LW-ASNPanel Model Diagonal Size 5.7" Application FSTN-LCD , LCMPanel Type Model Alias -
Reliability :	Operating Temp. 0 ~ 60 °C Storage Temp. -20 ~ 70 °C RoHS State -Vibration Rating

OPTREX F-55157GNF-LW-ASN Mechanical Details

Pixel Features :	Pixel Format 320×240, QVGA Dot Pitch 0.360×0.360 mm (H×V) Configuration Rectangle Pixel Pitch 0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :	Display Area 115.185×86.385 mm (H×V) Bezel Area 120.0×90.0 mm (H×V) Outline Dim. 160×109 mm (H×V) Outline Depth 11.0 (Max.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets :	Face mounting holes (4 pcs) on left, right slugs
Other Features :	Weight 265g (Max.) Surface -

OPTREX F-55157GNF-LW-ASN Optical Details

Basic Information :	Brightness 150 cd/m² (Typ.) Contrast Ratio 15:1 (Typ.) (Transmissive) Viewing Angle 40/44/25/35 (Typ.)(CR≥2) Optical Mode STN, Black/White mode, Transmissive Viewing Direction 6 o'clock Response Time 200/100 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity - Color Numbers Monochrome

OPTREX F-55157GNF-LW-ASN Electronics Details

Frame Frequency :	70Hz
Reverse Scan :	No

OPTREX F-55157GNF-LW-ASN Backlight Details

Back-light Features :	Lamp Type WLED Amount 3S3P Life Time - Replacement - Lamp Shape 3 strings Position Edge light type
Lamp Electrical :	Voltage Input 9.6V (Typ.) Current Input 20/25mA (Typ./Max.) Consumption 264mW (Max.)
Interface Features :	Type Connector Position - Lamp Driver No
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration JST SHLP-06V-S-B 1.0 mm 6 pins 1 pcs BLE-6PINS-AAACCC

OPTREX F-55157GNF-LW-ASN Interface Detail

Signal Systerm :	Parallel Data (4-bit) Logic Voltage -
Signal Electrical :	Voltage Input 5.0V (Typ.) Current Input 0.4/0.6mA (Typ./Max.)
Interface Features :	Type FPC Position -
FPC Detail :	Brand Model Pin Pitch Pins Amount Configuration 1.25 mm 14 pins 1 pcs

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
